Bevel and Beveloid Workholding


WE OFFER SOLUTIONS FOR ALL Bevel GEAR MANUFACTURING PROCESSES

Bevel Gear manufacturing is a specialized process and requires intimate knowledge to design the optimal workholding. The engineers at GRT have this knowledge and are able to provide the best engineered workholding possible. We are proficient in designing workholding for the following processes:

FACE MILLING FACE HOBBING SOFT TEST HARD TEST LAPPING GRINDING inspection

All of the above processes required special considerations due to the varying forces,clearances required and understanding the dynamic machine motions of the latest CNC Machines. GRT has years of experience designing custom workholding for all of these processes.


SPARE COLLETS AND WEAR PARTS

No matter who manufactured your workholding, we can provide replacement components for your existing workholding at a price that is often much more affordable then the OEM. In most cases, the replacement collets and or wear parts provided by GRT last longer than the OEM parts due to use higher quality tool steels and heat treatment.

Pinion Double Collets Gear collets and expanding disks GAUGES backing ring arbor noses

We can provide this to you with the highest quality and reasonable lead times that are typically less than other manufactures.


LARGE GEAR FIXTURes

We are experienced in providing flexible fixtures for large gear machines up to 3 meters and possibly larger. Depending on the customers requirements the fixtures can be manufactured from welded steel plates or from cast iron. We have the ability to design and provide custom cast segments for high force applications. All fixtures are stress relieved and ground as a set for the highest accuracy and stability.



Lapping Pinion and Gear Quick Change Arbor Modules

Lapping Pinion and Gear Quick Change Arbor Modules

Common Bevel Pinion Double Collets and Gear Expanding Disks

Common Bevel Pinion Double Collets and Gear Expanding Disks

Quick Change Base Tooling for cutting

Quick Change Base Tooling for cutting

Precision Gage Set #12 Taper

Precision Gage Set #12 Taper

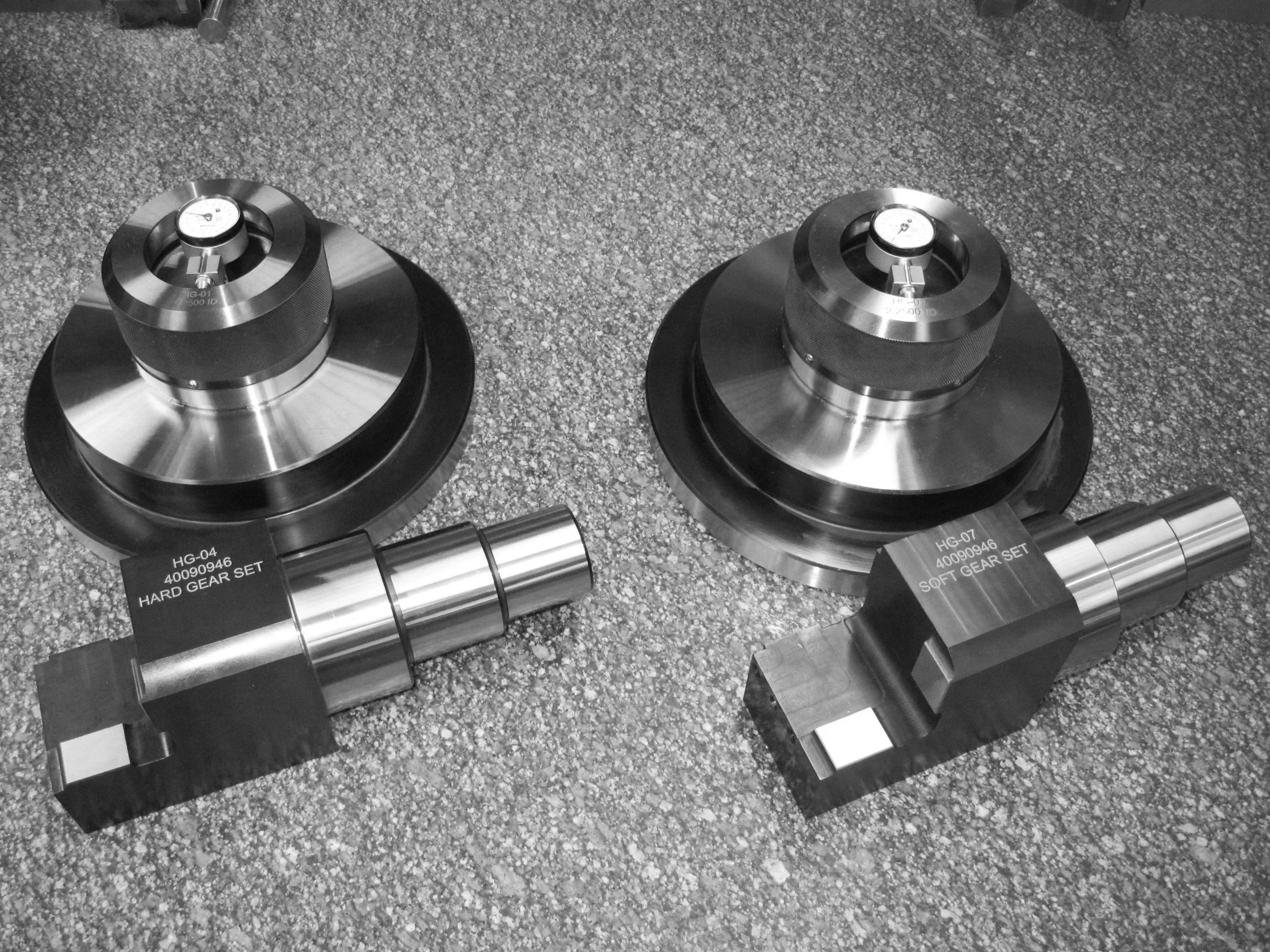

Hard and Soft Cone Gages (Hypoid Gages)

Hard and Soft Cone Gages (Hypoid Gages)
